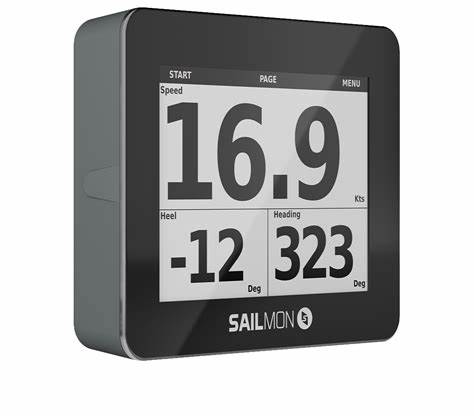

Sailmon | MAX

Description

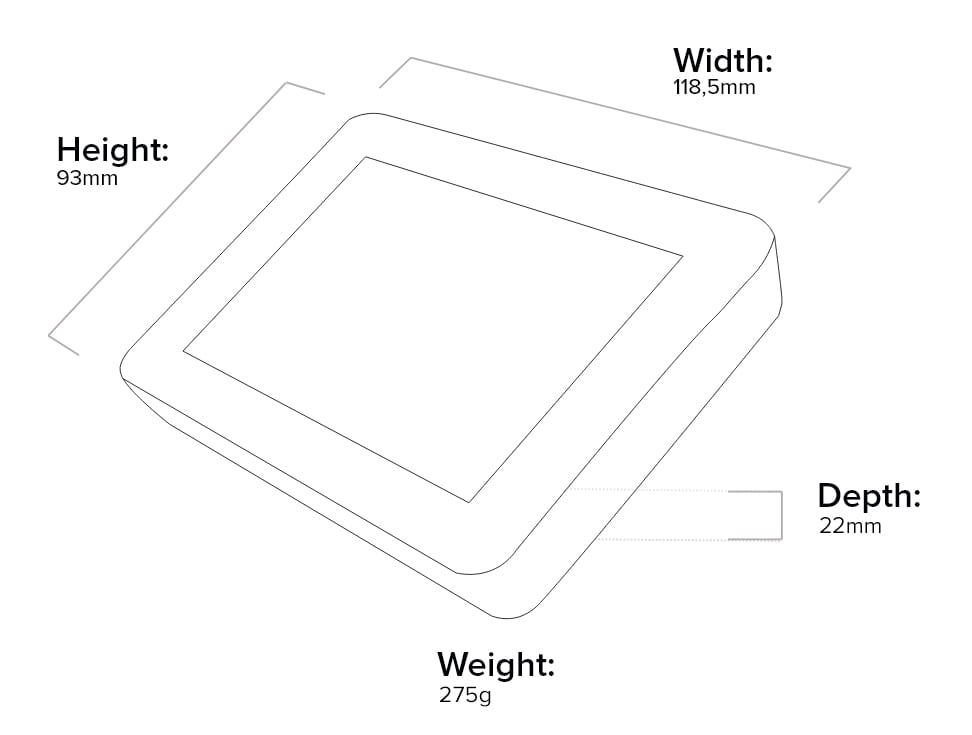

General Information

Height: 93mm
Width: 118,5mm
Depth: 22mm
Weight: 275gr

Buttons and Connectors
1) Soft keys for calibration and line ping

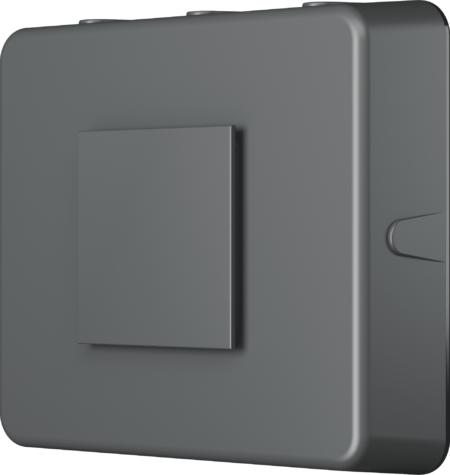

2) Inductive charging pad
3) Soft keys for menu navigation, & start controls

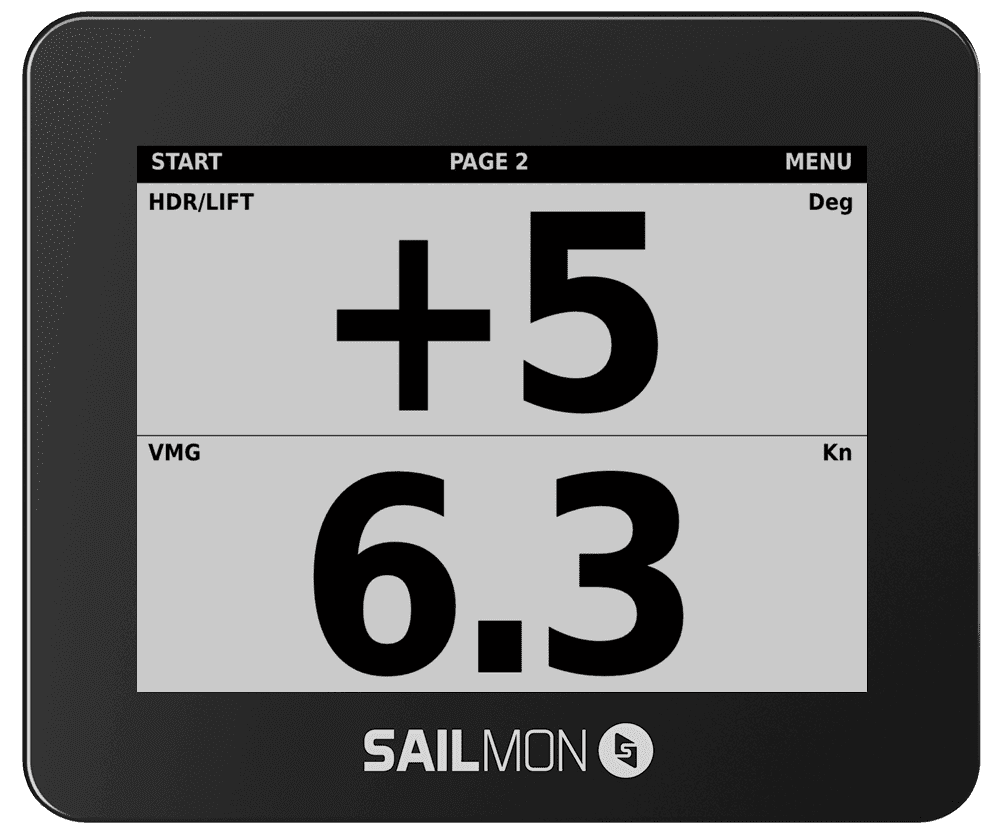

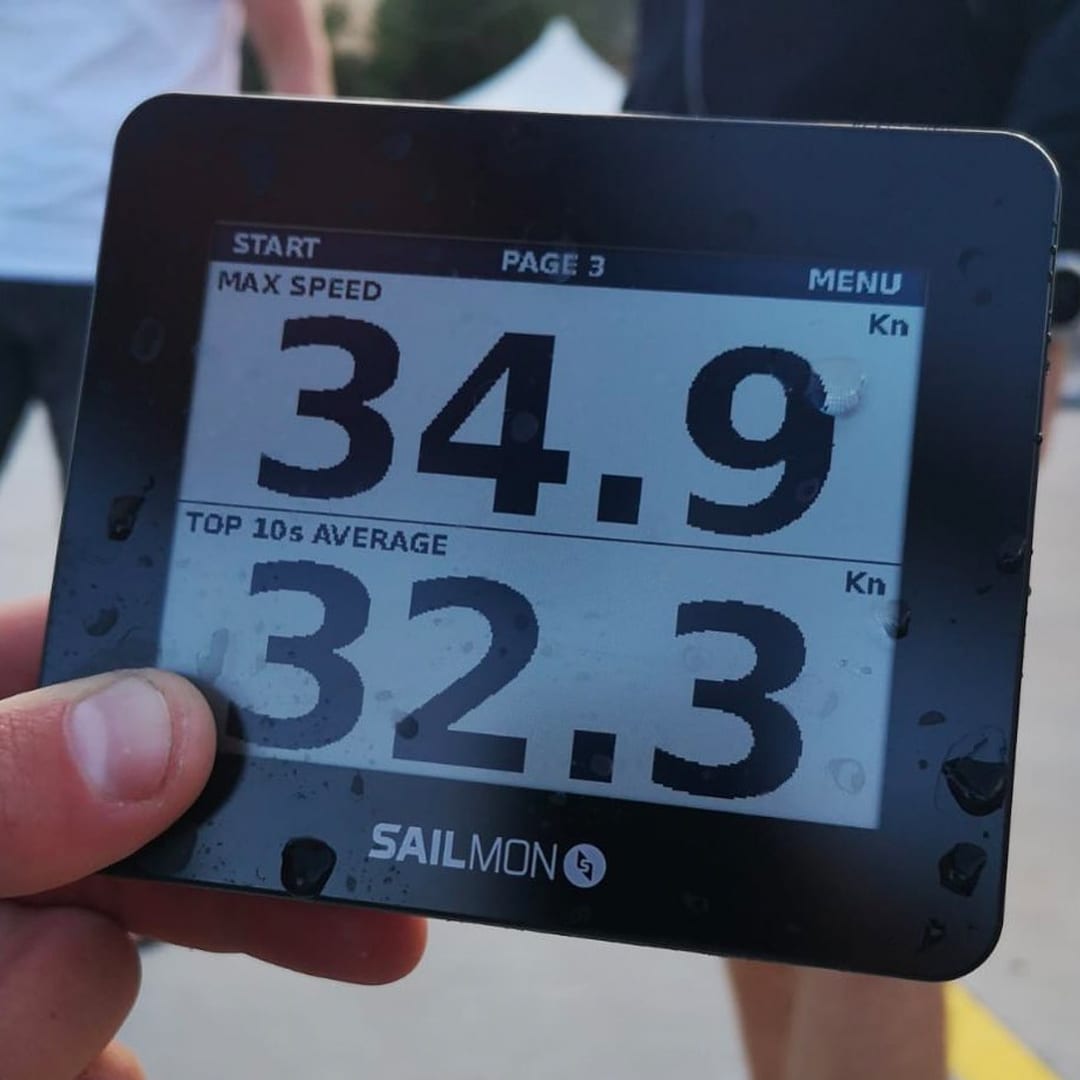

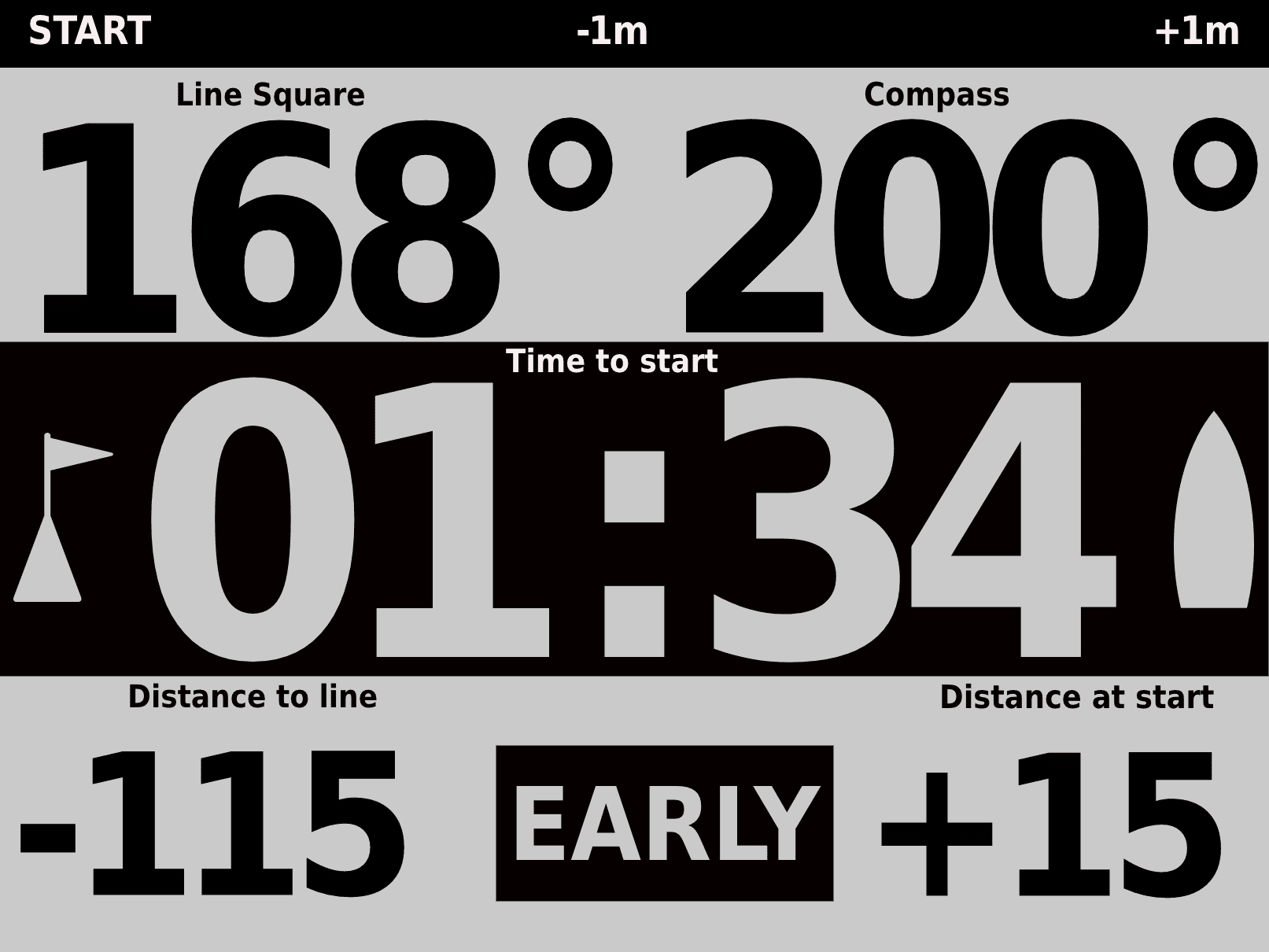

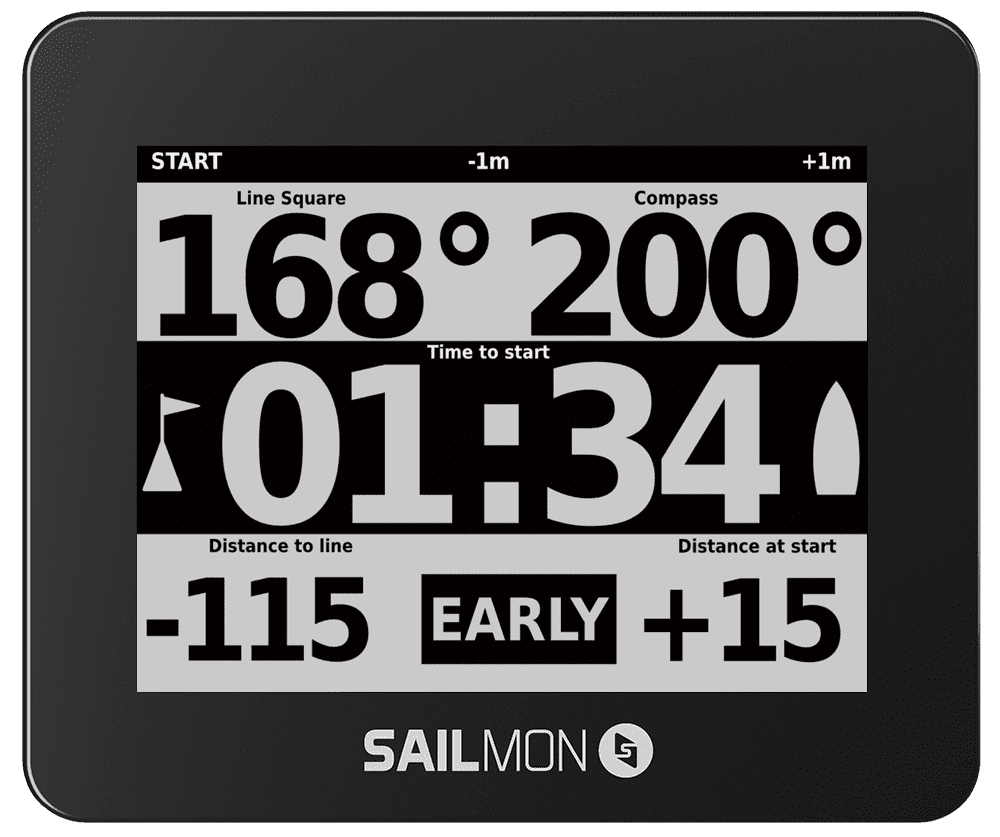

Display
320 x 240 pixels 4,4” transflective LCD
Anti-reflection front glass, for maximum viewability

Power & Battery
3600mAh lithium-polymer battery for
All-day battery use
Wireless waterproof charging

Sensors
25hz multi GNSS constellation GPS (GPS, GLONASS, Galileo, BeiDou)
9 DOF IMU for heading heel & pitch

Measurements & Logging
BSP
Heading, Heel, Pitch
Position, SOG, COG
Augmented AWA, AWS
Augmented TWA, TWS, TWD
Unlimited data logging

Features
Countdown timer
Distance to line
Estimated distance from line at start
Line bias
VMG calculation
Instant session report
Instant rankings

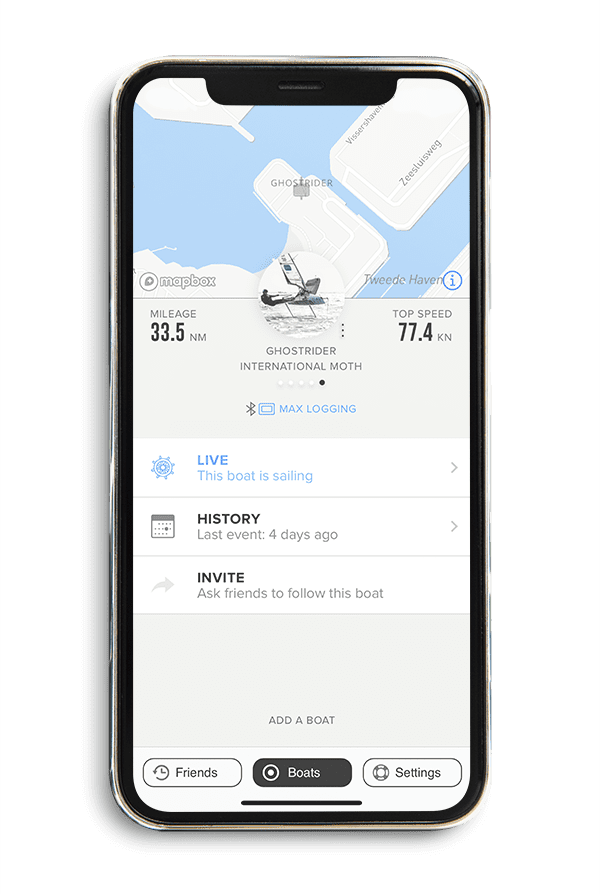

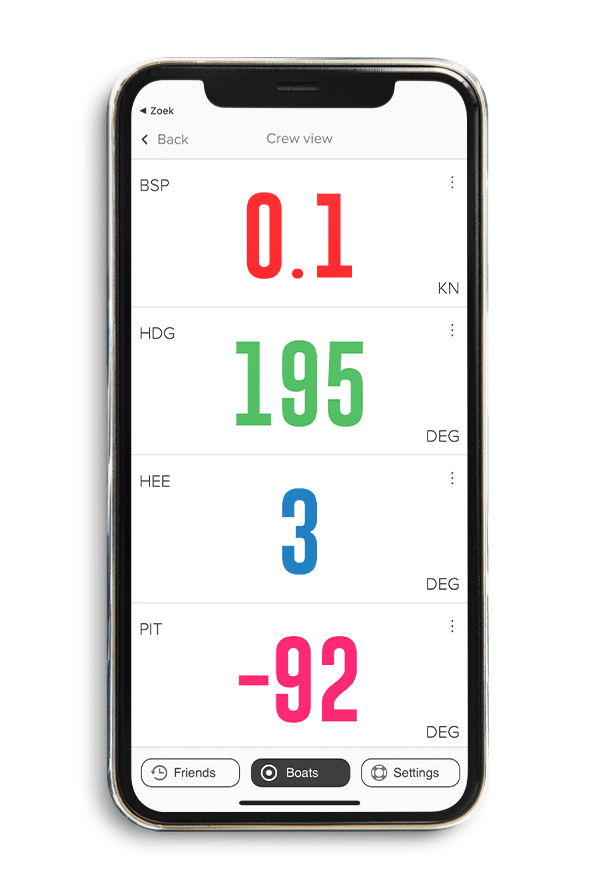

Value added data from Sailmon cloud
non GPS mode
Add speed, depth and wind using NMEA 0183 or NMEA 2000 sensors
